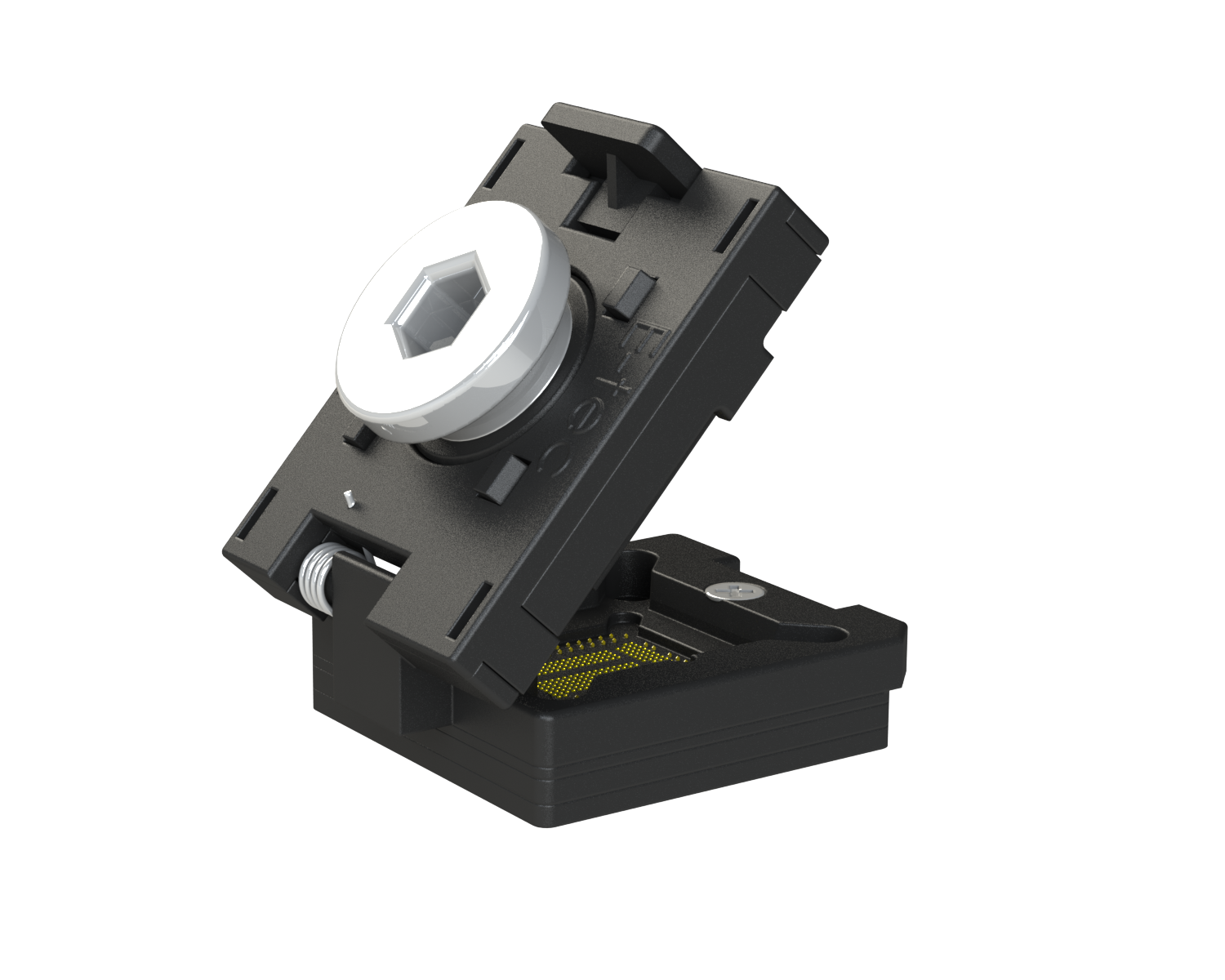

Burn-in Socket THT Clamshell for QFN Package 1.00 mm pitch (from 1.00 mm to 1.26 mm)

Burn-in Socket with ClamShell Style for Thru-Hole mount. Individual spring-loaded pressure pad per device type. Inexpensive GP insert accommodates many package sizes. Opening provided on top for sensor placement. X-shape stand-off prevents package from sticking. Accommodate 0.5~1.2mm thick packages.

View technical datas

Part Number

QMC-xxx-10-xx.x/xx

Keywords : Burn-in Socket Open Top Style. Accommodates Chip Scale Package with 0.40 up to 0.49mm pitch. Compact size and low actuation force. 4-point pinch design for enhanced electrical contact. Field exchangeable package location plate. "U" contact supports any pad or solder ball shape and composition.
