I/O Connectors > Standard D-Sub > D-Sub Raised THT Vertical >

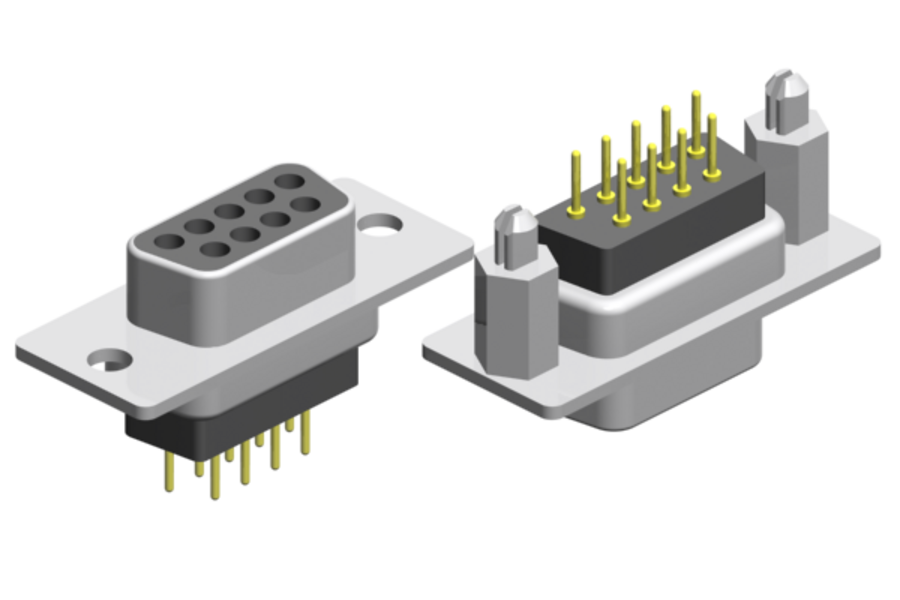

D-Sub Raised THT Vertical
D-Sub Raised THT Vertical, Female
E-Tec
SDF-xxx-B111-95-xxx

Raised THT Straight soldertail Female D-Sub with a board spacing option of 11.00mm, 12.70mm, 13.50mm or 14.50mm up to the mounting collar (Only available with distance bolts assembly option). Available in 9-, 15- 25- and 37-pin. Different mounting options as Jack screws, Thread rivet.
See more ...

D-Sub Raised THT Vertical, Male
E-Tec
SDM-xxx-B111-95-xxx

Raised THT Straight soldertail Malle D-Sub with a board spacing option of 11.00mm, 12.70mm, 13.50mm or 14.50mm up to the mounting collar (Only available with distance bolts assembly option). Available in 9-, 15- 25- and 37-pin. Different mounting options as Jack screws, Thread rivet.
See more ...
