I/O Connectors > Standard D-Sub > D-Sub THT 90° Closed body (Long, US and EURO-Style) >
D-Sub THT 90° Closed body (Long, US and EURO-Style)

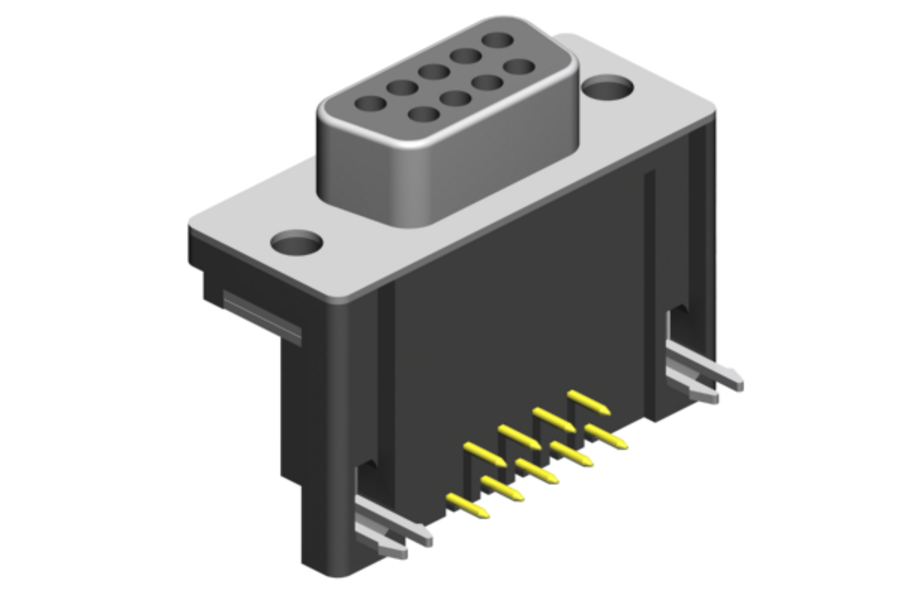

D-Sub Closed body 15.00mm Long Style footprint, Female THT 90°
E-Tec
SDF-xxx-L900-55-xx

THT 90° Right angle Female D-Sub closed body 15.00mm Long Style footprint with 9-, 15- 25- and 37-pin. Available with grounding board lock clip or grounding strap and different mounting options as Jack screw or thread rivet.
See more ...

D-Sub Closed body 15.00mm Long Style footprint, Male THT 90°
E-Tec
SDM-xxx-L900-55-xx

THT 90° Right angle Male D-Sub closed body 15.00mm Long Style footprint with 9-, 15- 25- and 37-pin. Available with grounding board lock clip or grounding strap and different mounting options as Jack screw or thread rivet.
See more ...

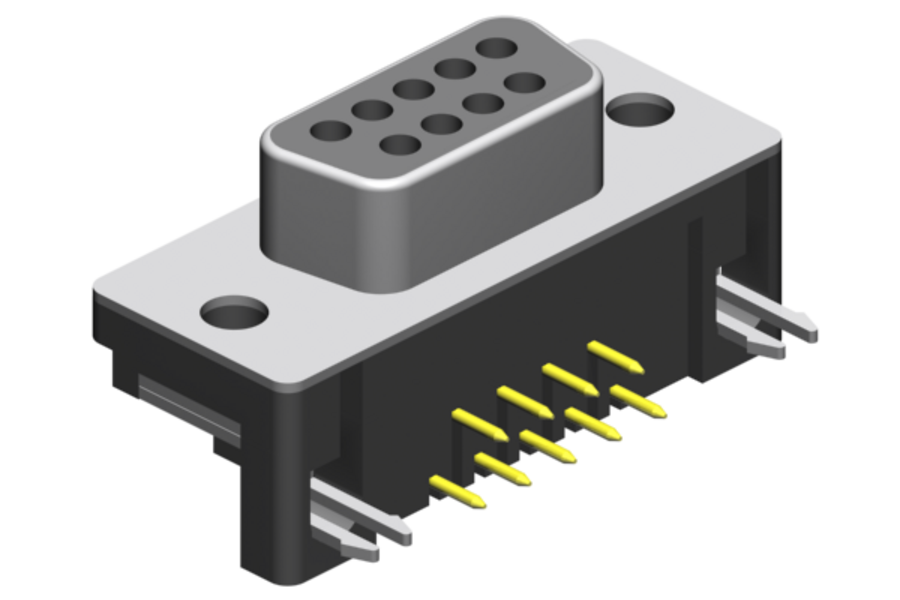

D-Sub Closed body 8.08mm US Style footprint, Female THT 90°
E-Tec
SDF-xxx-N900-xx-xx

THT 90° Right angle Female D-Sub closed body 8.08mm US Style footprint with 9-, 15- 25- and 37-pin . Also according to PC99 specification. Available with flat or round grounding board lock clip, or grounding strap with mounting hole. Different mounting options as mounting hole, thread rivet, etc...
See more ...

D-Sub Closed body 8.08mm US Style footprint, Male THT 90°
E-Tec
SDM-xxx-N900-xx-xx

THT 90° Right angle Male D-Sub closed body 8.08mm US Style footprint with 9-, 15- 25- and 37-pin. Also according to PC99 specification. Available with flat or round grounding board lock clip, or grounding strap with mounting hole. Different mounting options as mounting hole, thread rivet, etc...
See more ...

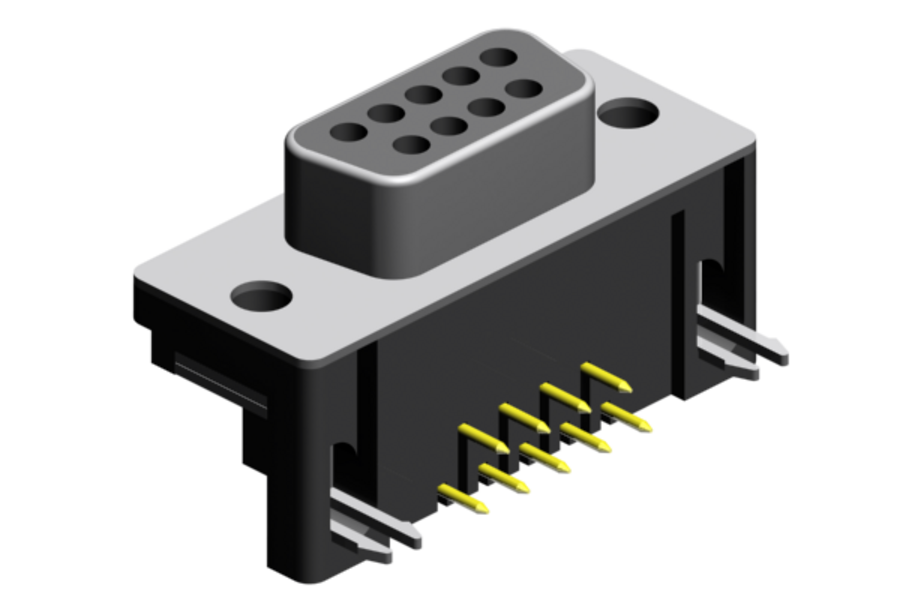

D-Sub Closed body 9.40mm Euro Style footprint, Female THT 90°
E-Tec
SDF-xxx-M900-55-Nx

THT 90° Right angle Female D-Sub closed body 9.40mm Euro Style footprint with 9-, 15- 25- and 37-pin. Available with grounding board lock clip and different mounting options as Jack screw or thread rivet.
See more ...

D-Sub Closed body 9.40mm Euro Style footprint, Male THT 90°
E-Tec
SDM-xxx-M900-55-Nx

THT 90° Right angle Male D-Sub closed body 9.40mm Euro Style footprint with 9-, 15- 25- and 37-pin. Available with grounding board lock clip and different mounting options as Jack screw or thread rivet.
See more ...
