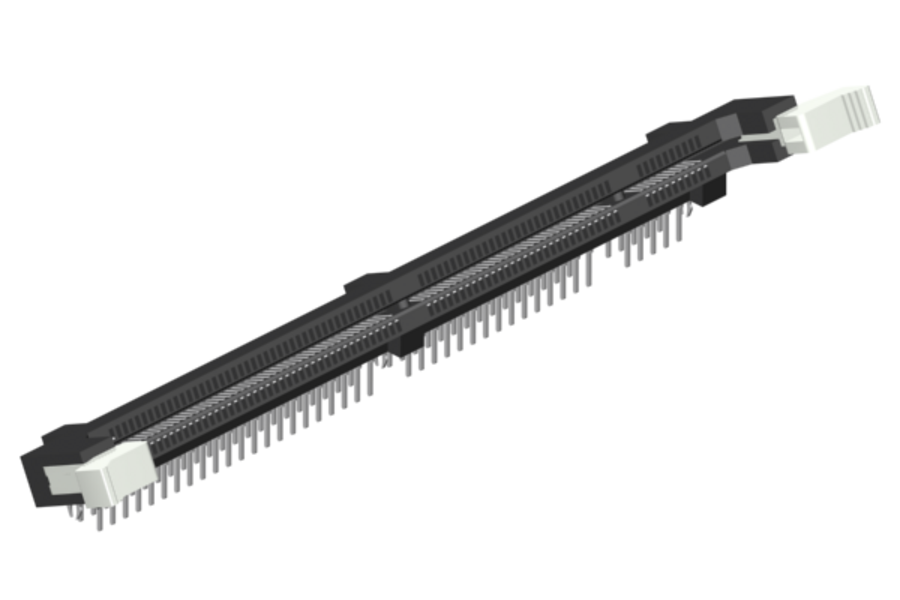

DIMM Sockets - THT - 168-pin slanted 25° socket type

DIMM Sockets - THT - 168-pin slanted 25° for D-RAM, SD-RAM and UD-RAM modules in 3,3V version. The socket with selective gold-plated contacts. Tin on soldering, and gold in contact area.

View technical datas

Part Number

DM1-168-SCA8-95/1L

Keywords : CARD EDGE CONNECTORS - PCI 1.27mm pitch PCI Card Edge Connector - THT - 1.27mm pitch ECC-xxx-Pxxx- xxPCB
