Board to Board / Wire to Board & Wire to Wire Connectors > Female Headers > SMT Types > SMT standard profile Types > Pitch 1.27 mm >

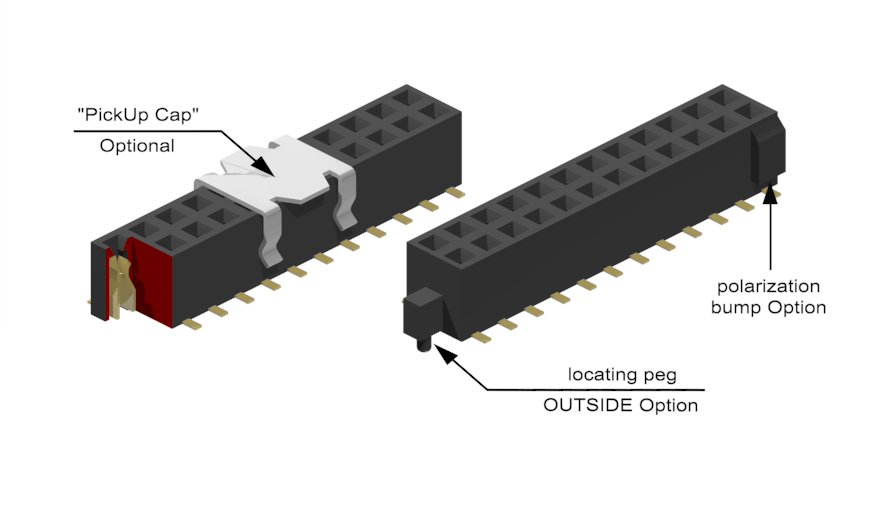

Double row 4.50mm profile, Top Entry |
|
BS2 - xxx - H45x - 55/11 X FEMALE HEADERS - Double row, 1.27mm pitch with a height of 4.50mm, Type standard profile. SMT soldering technology. Top Entry design for board stacking. Reliable contact thanks to Hi-rel dual beam contact design. With Locating pegs and Polarization bump options |

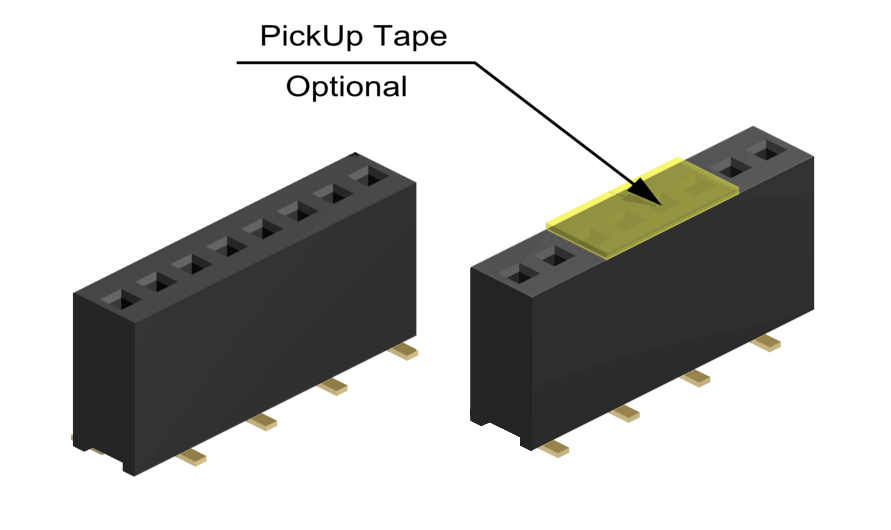

Single row 4.50mm profile, Top and Bottom Entry |
|
BS1 - xxx - H45x - 55/11 XX FEMALE HEADERS - Single row, 1.27mm pitch with a height of 4.50mm, Type standard profile. SMT soldering technology. Dual Entry design for board stacking. Reliable contact thanks to Hi-rel dual beam contact design. |
Dual row 6.00mm profile |
|
BS2 - xxx - H600 - 55/1 X FEMALE HEADERS - Double row, 1.27mm x 2.54mm pitch with a height of 6.00mm, Type standard profile. SMT soldering technology. Reliable contact thanks to Hi-rel inner contact design. |
