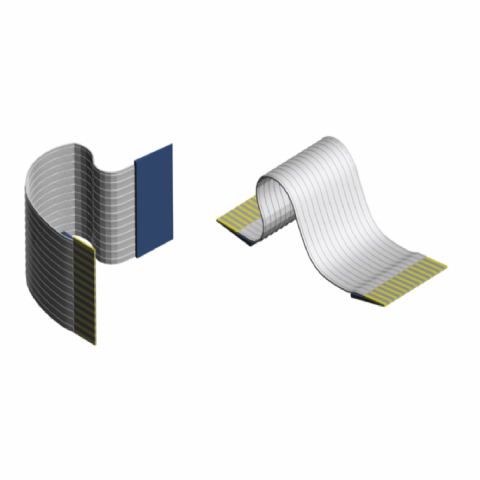

FLEX CABLE
Pitch from 1.0mm to 5.08mm
E-Tec
FCJ - xxx - Xxxx - XX - xxxx - x

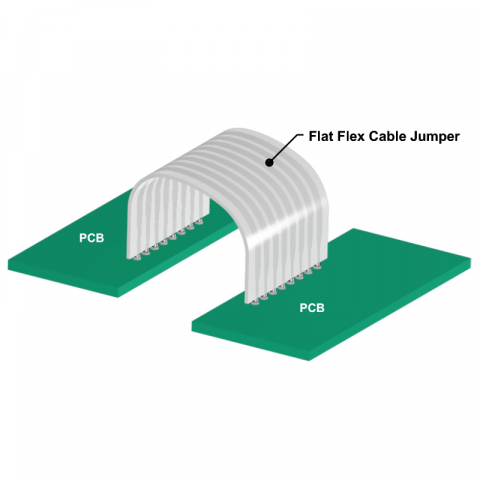

Flat Flex Cable Jumpers are soldered Board to Board connection and are used in places where electrical connections require a high flexibility and-or PCBs to be connected are subject to vibrations.

A simple but effective board to board solution allows flexible movement between PCBs without compromising performance in demanding environments. Simple and quick to assemble, once manually placed into PCB and flow soldered these jumper cables provide a robust connection.

Available in pitches between 1.0mm and 5.08mm to provide current rating per conductor from 1.0A to 4.0A (and common sizes in between).

Available with PET or highly durable Nomex(TM) insulators.

For further information, please contact our office.
See more ...

0.50mm to 2.54mm pitch
E-Tec
FCA - x xx - X xxx - 4 4 06 10 - x

FLEX CABLE - FLEX CABLE 0.50mm to 2.54mm pitch. The flexible ribbon cables from E-tec have up to 200 cores. The distance between the cores can be 0.50 mm for a maximum of 200 cores, up to 2.54 mm for a maximum of 38 cores. Standard is a light gray PVC material, with a red or black border marking the first wire. On request, there are also color-coded ribbon cables in which adjacent wires have ten different colors according to DIN IEC 62. The ribbon cables can also be provided with a shielding, made of aluminum or copper foil, upon customer request.
