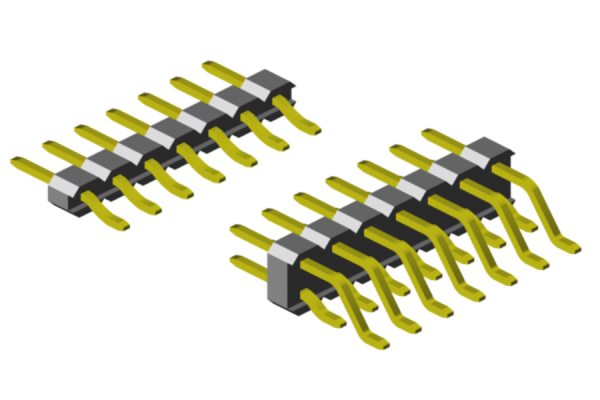

SMT (Surface mounting) soldering, horizontal, single and dual rows depend on pitch. Differents standard dimensions of the plug side. Special customer dimensions are also possible.

Available in Pitch: 1.27mm - 2.00mm and 2.54mm

Please select your Pitch:

SMT slanted
1.27mm pitch
E-Tec
SR2 - xxx - H 12-xx - xx-11 X

PIN HEADER - SMT Slanted (horizontal) 1.27mm pitch, double row with a variety of standard dimensions of the soldering and plug side. Special customer-specific dimensions are possible. Details and dimensions applied can be find on the View technical datas
See more ...

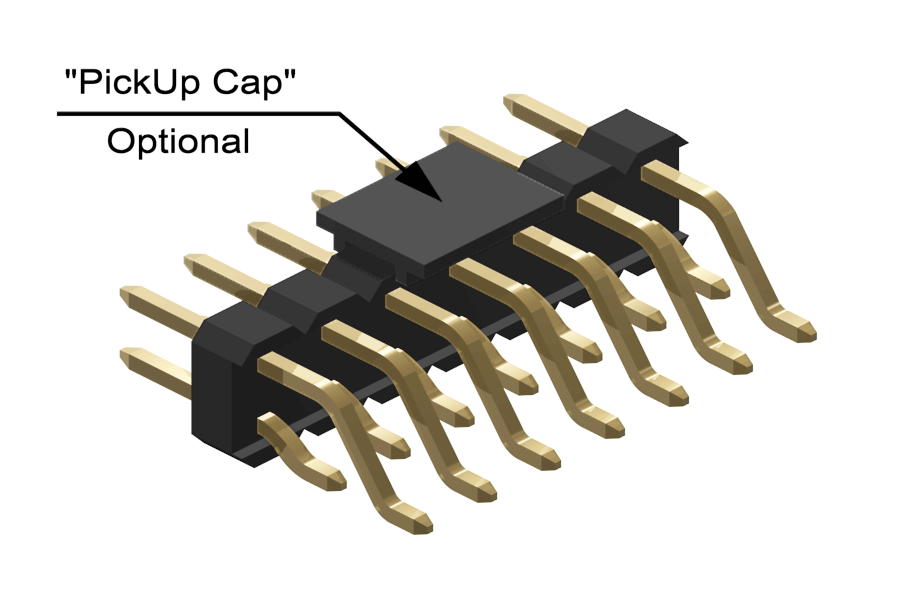

2.00mm pitch
E-Tec
SR x - xxx - H xxx-x - 55-2 X

PIN HEADER - SMT Slanted (horizontal) 2.00mm pitch, single and double row with a variety of standard dimensions of the soldering and plug side. Location peg options (only for Dual row). Special customer-specific dimensions are possible. Details and dimensions applied can be find on the View technical datas
See more ...

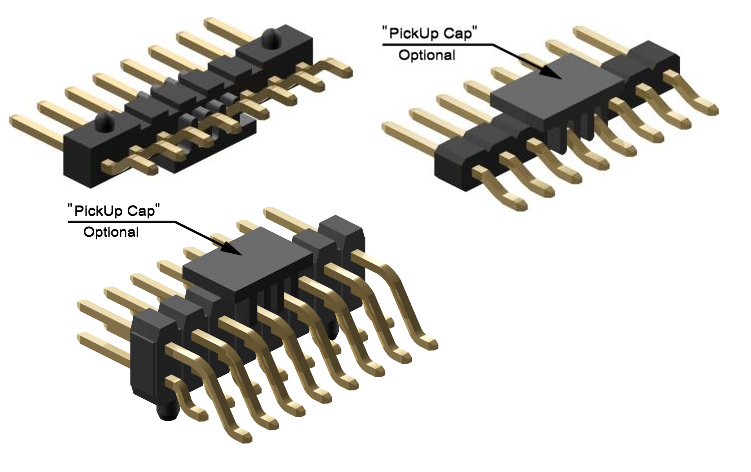

2.54mm pitch
E-Tec
SRx - xxx-H135-xx-xx X

PIN HEADER - SMT Slanted (horizontal) 2.54mm pitch, single and double row with a variety of standard dimensions of the soldering and plug side. Location peg options. Special customer-specific dimensions are possible. Details and dimensions applied can be find on the View technical datas
See more ...
