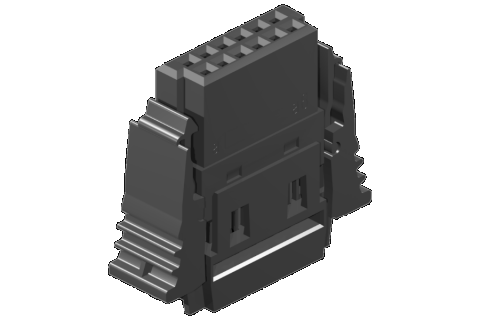

Female header
1.27mm to IDC height 13.70mm
E-Tec
MBC - xxx - BIC52 - xx-11L

SMC Multi BUS-Backplane connector 1.27mm pitch, Female header to IDC, height (overall) - 13.70mm. Compatible ro ERNI INTERact® Series SMC Type. Available in 10, 12, 16, 20, 26, 30, 32, 40, 50, 68 and 80 poles
See more ...

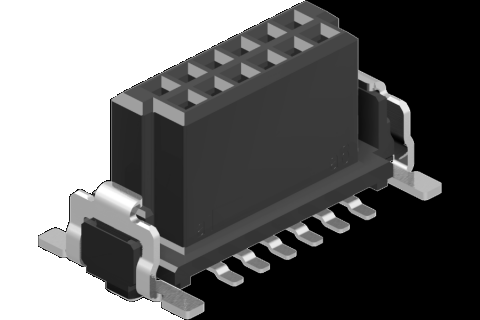

1.27mm SMT vertical height 13.65mm
E-Tec
MBC - xxx - BFV136 - xx-11E

SMC Multi BUS-Backplane connector 1.27mm pitch, Female header SMT vertical soldering technology, height (unplugged) - 13.65mm. Available in 12, 16, 20, 26, 30, 32, 40 and 50 poles
See more ...

1.27mm SMT vertical height 6.20mm
E-Tec
MBC - xxx - BFV62 - xx-11E

SMC Multi BUS-Backplane connector 1.27mm pitch, Female header SMT vertical soldering technology, height (unplugged) - 6.20mm. Available in 12, 16, 20, 26, 30, 32, 40, 50, 68 and 80 poles
See more ...

1.27mm SMT vertical height 9.00mm
E-Tec
MBC - xxx - BFV90 - xx-11E

SMC Multi BUS-Backplane connector 1.27mm pitch, Female header SMT vertical soldering technology, height (unplugged) - 9.00mm. Available in 12, 16, 20, 26, 30, 32, 40, 50, 68 and 80 poles
See more ...

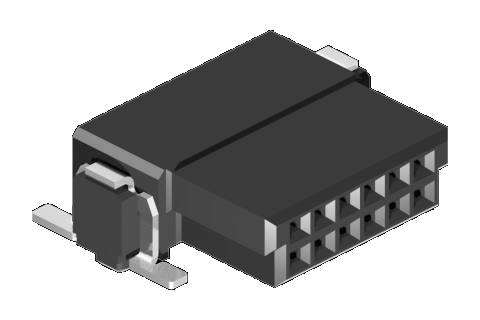

1.27mm SMT horizontal height 3.85mm
E-Tec
MBC - xxx - QFH38 - xx-11Q

SMC Multi BUS-Backplane connector 1.27mm pitch, Female header SMT horizontal soldering technology, height (unplugged) - 3.85mm. Available in 12, 20, 26, 32, 40, 50, 68, 80 and 100 poles
See more ...
