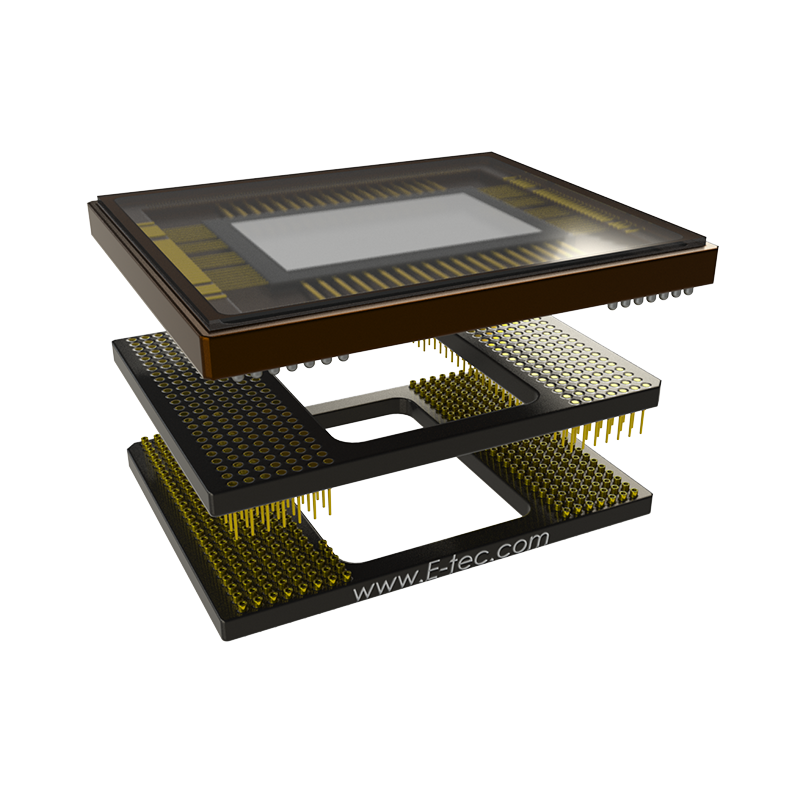

E-tec Interconnect BGA Image Sensor Adapters Series mounting solution is composed from :
One BGA Adapter and One Image Sensor Socket
Your BGA Image Sensor must first be solder on the top of the E-tec Interconnect BGA Adapter (this operation converting your BGA Image Sensor to a PGA component and you can plugged it into the Image Sensor Socket.
Image Sensor Socket:
The E-tec Interconnect Image sensor Socket provide higher reliability thanks the precision machined pins with incorporate a BeCu contact clip to ensure security of the imager while maintaining its pluggability.
The sensors can easily be plugged-in and unplugged to upgrade process.
The E-tec Interconnect Image Sensor Sockets can be fix to your PCB by the follow soldering technologies :
Standard Surface mount (SMT)
Solderball Surface mount (SMT)
This protect your device from high temperature during the soldering process, cleaning process, shocks, etc..
E-tec Interconnect can provide you a largest line of Image Sensor Sockets for Imaging industry. Our sockets are created for:
Sony, Teledyne, Kodak, Motorola, and all other manufacturer, please send us your request.
Imaging, CMOS, CCD, Thermal Sensor, Optic
