LCC Sockets Series

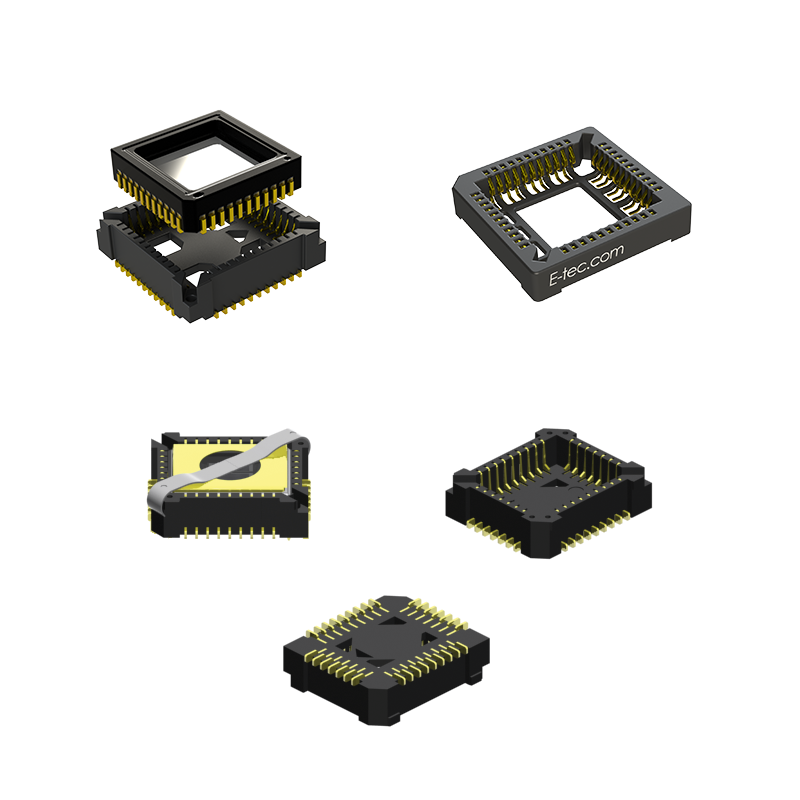

LCC Sockets SMT JEDEC Type C
E-Tec
LCC-xxx-H200-55

LCC Sockets SMT production sockets for JEDEC Type C LCC chips. Socket design for automatic assembly and vacuum pick and place machines. In order to ensure compatibility with newer generation 44-pin LCC chip packages we have replaced the previous H200 contact style by new style H403. The previous generation 44-pin chip packages are also adapted to this new contact style. The SMT terminals extend beyond the side of the socket body, which permits direct access of the infrared heat to the terminal, thus preventing an undesired heat exposure of the insulator. Optional retention clips are available, which can be mounted and demounted without any tools. Chips can be easily removed with the Universal extraction tool PUL-200.
See more ...

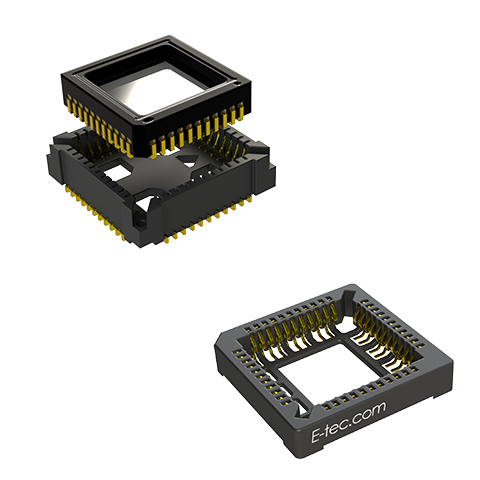

LCC Sockets THT Through hole JEDEC Type C
E-Tec
LCC-xxx-H210-55

LCC Sockets THT Through hole production sockets for JEDEC Type C LCC chips. Socket design for automatic assembly and vacuum pick and place machines. Optional retention clips are available, which can be mounted and demounted without any tools. Chips can be easily removed with the Universal extraction tool PUL-200.
See more ...

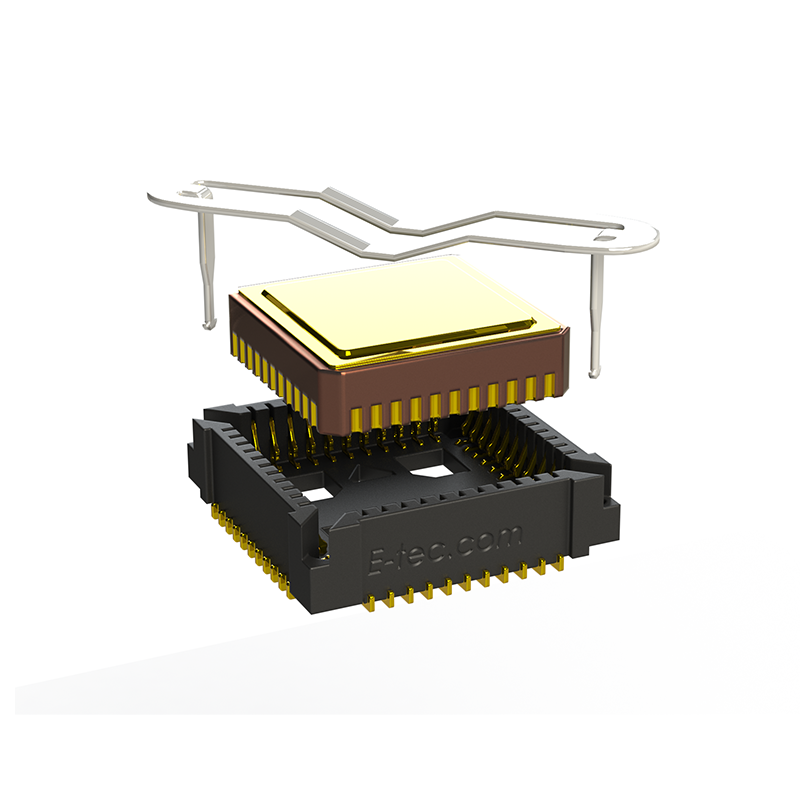

Special Customer LCC Sockets SMT
E-Tec
LCC-044-H403-55

Special Customer LCC Sockets SMT production sockets. Socket special design for custom packages, adpated to the special dimensions. The SMT terminals extend beyond the side of the socket body, which permits direct access of the infrared heat to the terminal, thus preventing an undesired heat exposure of the insulator. Optional retention clips are available, which can be mounted and demounted without any tools. Chips can be easily removed with the Universal extraction tool PUL-200.
See more ...
