Clamshell Alu (> 200 contacts) 0.50 mm pitch (from 0.50 mm to 0.79 mm)

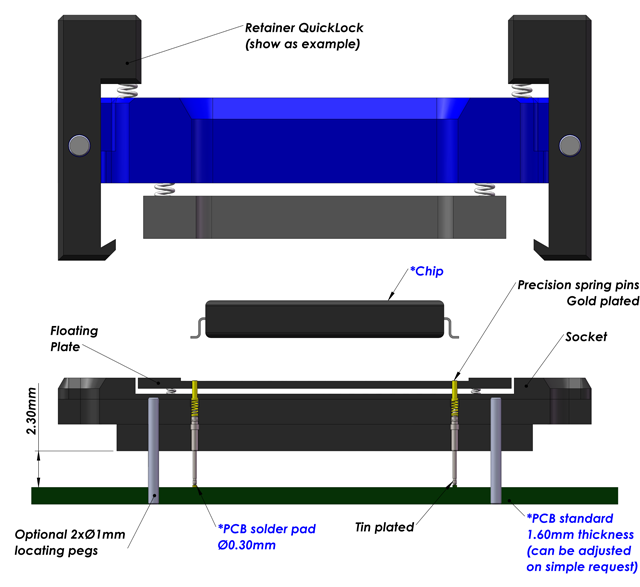

http://www.e-tec.com/v5/picture_search/test-sockets-and-adapters/Gullwing-0.50-Raised.pngQUJ####-0529-######95A#The Raised SMT socket lifts the socket above close-by components on PCB and uses the same footprint as your chip. Socket is simply placed and reflowed onto the PCB in the same way as the chip and it only requires a small amount of additional board space. SMT type sockets are available with all retention systems. We aim to solve your requirements. Please note, we will always request the chip data to ensure we offer a compatible socket. For SMT sockets in general, E-tec Interconnect AG recommends the use of locating pegs, which can be soldered to the PCB for added mechanical strength.

To Products Overview :

Test Sockets & Adapters
- Test Sockets for SOP - DSO - SOIC - QFP - xQFP Package
  - Pitch from 0.50mm to 0.79mm
    - Raised SMT soldering Test Socket
      - Clamshell Alu (> 200 contacts)

        Clamshell Alu (> 200 contacts) 0.50 mm pitch (from 0.50 mm to 0.79 mm)

To Browsing Search :

Test Sockets & Adapters
- Test Sockets for SOP - DSO - SOIC - QFP - xQFP Package
  - Pitch from 0.50mm to 0.79mm
    - Raised SMT soldering Test Socket
      - Clamshell Alu (> 200 contacts)

        Clamshell Alu (> 200 contacts) 0.50 mm pitch (from 0.50 mm to 0.79 mm)

Clamshell Alu (> 200 contacts) Raised SMT soldering Test Socket for SOP - DSO - SOIC - QFP - xQFP Package 0.50 mm pitch (from 0.50 mm to 0.79 mm)

The Raised SMT socket lifts the socket above close-by components on PCB and uses the same footprint as your chip. Socket is simply placed and reflowed onto the PCB in the same way as the chip and it only requires a small amount of additional board space. SMT type sockets are available with all retention systems. We aim to solve your requirements. Please note, we will always request the chip data to ensure we offer a compatible socket. For SMT sockets in general, E-tec Interconnect AG recommends the use of locating pegs, which can be soldered to the PCB for added mechanical strength.

Part Number

QUJ####-0529-######95A#

Related documents

Socket mounting recommendation and Reflow profile

Specifications Retention / Retainer frames

Test Sockets Options

Keywords : QUJ####-0529-######95A#, Clamshell Alu (> 200 contacts) Raised SMT soldering Test Socket for SOP - DSO - SOIC - QFP - xQFP Package 0.50 mm pitch (from 0.50 mm to 0.79 mm)
